Home / 10 - 19" Touch Screens / iiyama TF1215MC-B1 12.1" Open Frame Touch Monitor

iiyama

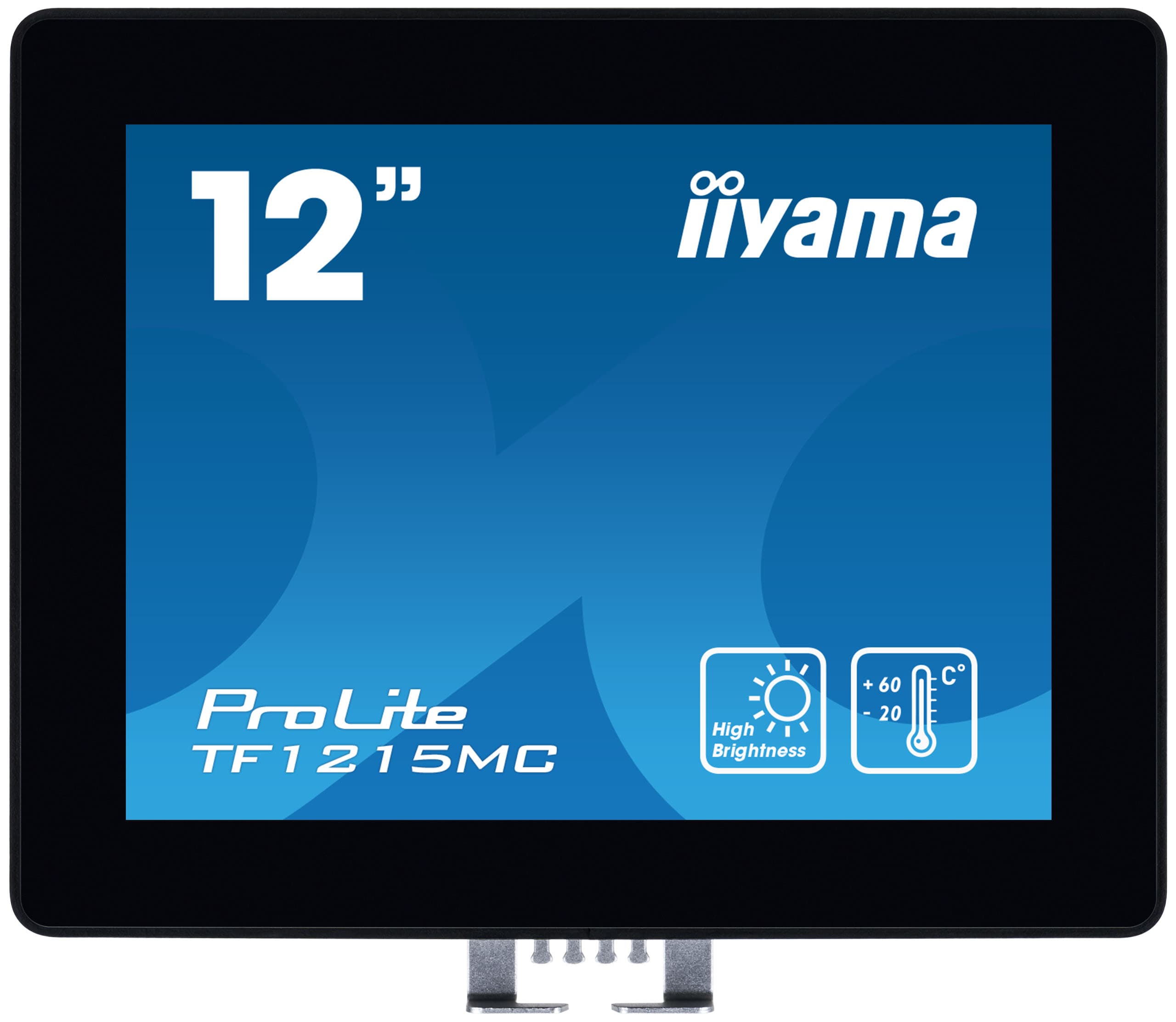

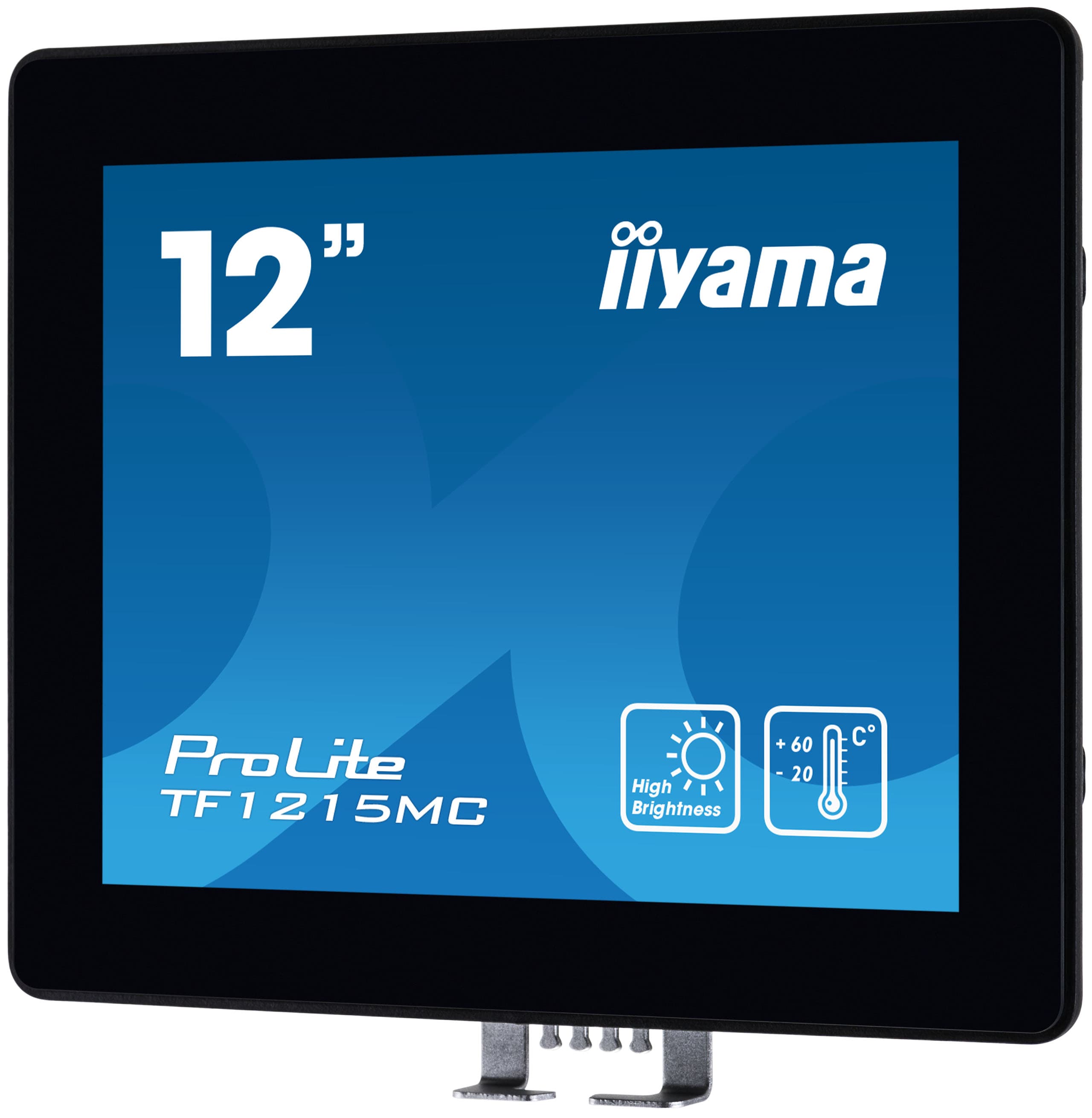

iiyama TF1215MC-B1 12.1" Open Frame Touch Monitor

Name: iiyama TF1215MC-B1 12.1" Open Frame Touch Monitor
Brand: iiyama
SKU: TF1215MC-B1
Price: 486.89 GBP
Availability: LimitedAvailability

SKU TF1215MC-B1

3 Years Warranty Included

Key specifications

DesignOpen Frame

Diagonal12.1", 31cm

PanelIPS Technology

Native resolution1024 x 768 (0.8 megapixel)

Aspect ratio4:3

Panel brightness540 cd/m²

Brightness450 cd/m² with touch

Light transmittance85%

£486.89inc. VAT

£405.74 ex. VAT

Ask a question

Low stock (5 left) — order soon

Request a Quote

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Est. delivery 29 Aug - 2 Sept

Return within 14 days

Installation services available Purchase orders — education customers only

Description

ProLite TF1215MC-B1 12.1’’ PCAP 10pt touchscreen solution for pick-up points Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Technical specifications

Display

PanelIPS Technology

Native resolution1024 x 768 (0.8 megapixel)

Aspect ratio4:3

Panel brightness540 cd/m²

Brightness450 cd/m² with touch

Static contrast1000:1

Touch technologyprojective capacitive

Touch points10 (HID, only with supported OS)

Touch methodfinger, glove (latex), capacitive stylus

Touch interfaceUSB

Connectivity

Colour support16.2mln (6bit + Hi-FRC)

Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Analog signal inputVGA x1

Digital signal inputHDMI x1DisplayPort x1

Audio outputMini jack x1

OSD languagesEN, DE, FR, ES, IT, CN, JP

Power & Physical

VESA mounting100 x 100mm

Product dimensions W x H x D308.5 x 248 x 41.5mm

Box dimensions W x H x D435 x 355 x 165mm

Weight (without box)2.1kg

Weight (with box)3.9kg

General

DesignOpen Frame

Diagonal12.1", 31cm

Light transmittance85%

Response time (BTB)25ms

Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Horizontal Sync31.4 - 60kHz

Viewable area W x H245.8 x 184.3mm, 9.7 x 7.2"

Pixel pitch0.24mm

Bezel colour and finishblack

Through-Glass6mm

Palm rejectionyes

HDCPyes

Extraanti-fingerprint coating, touch through-glass

Glass thickness3.15mm

Glass hardness7H

60950 Ball drop testyes

Water and dust protectionIP65 (front)

Water tight sealyes

OSD key lockyes

Control buttonsMenu, Scroll up / Brightness, Scroll down / Contrast, Select, Power

User controlspicture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)

Plug&PlayDDC2B

Orientationlandscape, portrait, face-up

Operation temperature range (-°/+°)-20°C - 60°C

Storage temperature range- 20°C - 60°C

Cablespower, USB, HDMI, DP

Guidesquick start guide, safety guide

OtherAC adapter, external control pad

Remote controlexternal control pad

Power supply unitexternal

Power supplyDC 12 V

Power usage10W typical, 0.55W stand by, 0.5W off mode

RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH

Energy efficiency class (Regulation (EU) 2017/1369)F

EAN code4948570118007

Mounts / Stands / BracketsOMK3-1

Related productsOMK3-1

User manualTF10_15_22_2415MC-B2_A_B_1215MC-B1A_1615MC-B1-usermanual-e-revK.pdf

Technical specificationProLite TF1215MC-B1 - gb_en.pdf

DrawingTF1215MC-B1 drawing.pdf

EU Energy LabelTF1215MC-B1 EU Energy Label pdf data (356882).pdf

UK Energy LabelTF1215MC-B1 UK Energy Label pdf data (356882).pdf

CETF1215MC-1B CE DoC.pdf

Documents

iiyama TF1215MC-B1 datasheet
