Home / 10 - 19" Touch Screens / iiyama TF1515MC-B2 15" Open Frame Touch Monitor
iiyama

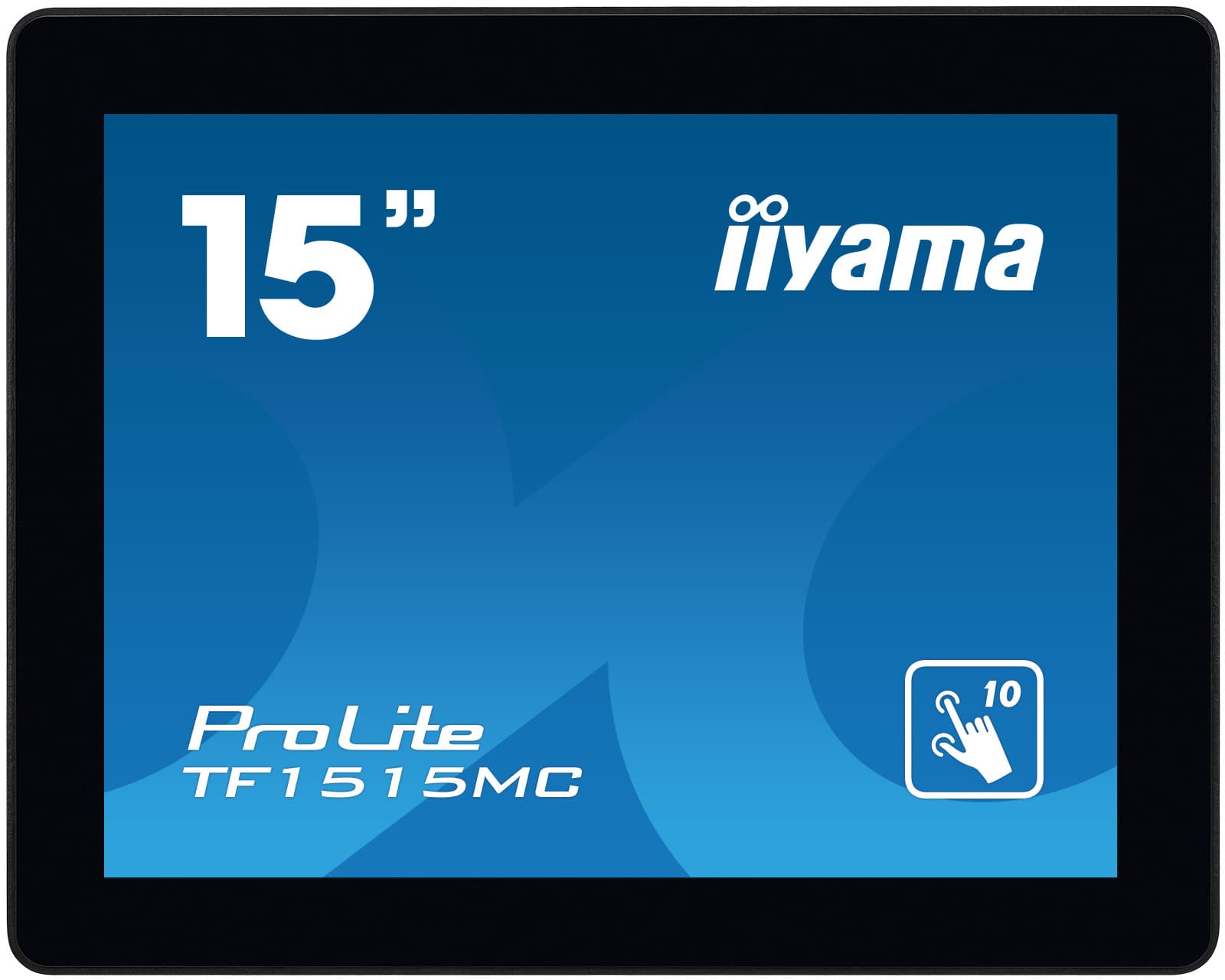

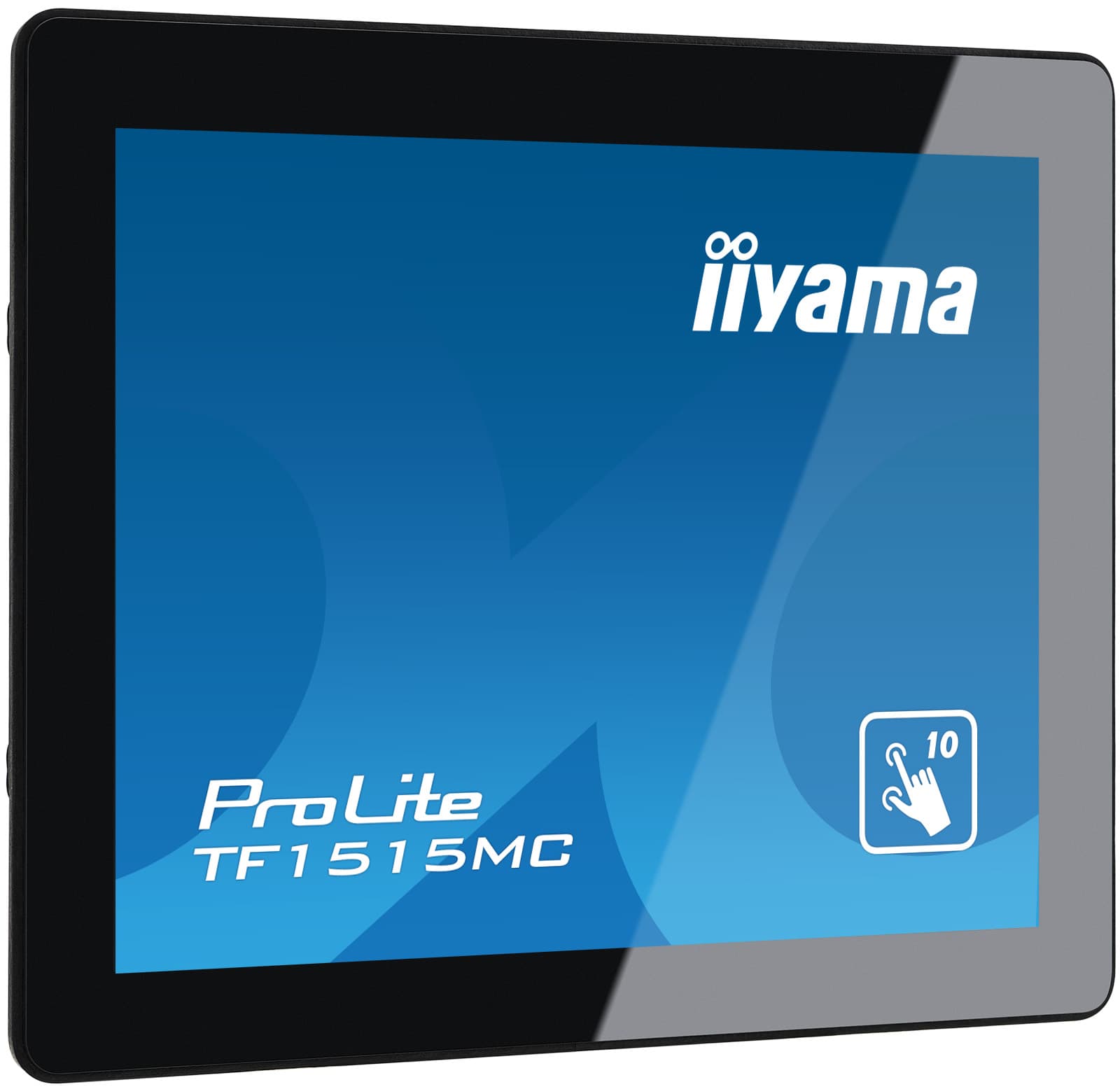

iiyama TF1515MC-B2 15" Open Frame Touch Monitor

SKU TF1515MC-B2
3 Years Warranty Included
Key specifications
DesignOpen Frame
Diagonal15", 38cm
PanelTN LED
Native resolution1024 x 768 (0.8 megapixel)
Aspect ratio4:3
Panel brightness350 cd/m²
Brightness315 cd/m² with touch
Light transmittance90%
£438.66inc. VAT
£365.55 ex. VAT
Low stock (5 left) — order soon
1
Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Est. delivery 29 Aug - 2 Sept
Return within 14 days
Installation services availablePurchase orders — education customers only

Description

ProLite TF1515MC-B2 Open Frame PCAP 10 point touch screen equipped with touch through glass function The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets (OMK2-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive m

Technical specifications

Display
PanelTN LED
Native resolution1024 x 768 (0.8 megapixel)
Aspect ratio4:3
Panel brightness350 cd/m²
Brightness315 cd/m² with touch
Static contrast800:1 with touch
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Connectivity
Colour support16.2mln (6bit + Hi-FRC)
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Audio outputMini jack x1
RJ45 (LAN)x1
OSD languagesEN, DE, FR, ES, IT, CN, JP
Power & Physical
VESA mounting100 x 100mm
Product dimensions W x H x D364 x 291 x 41.5mm
Box dimensions W x H x D460 x 470 x 175mm
Pallet dimensions W x H x D860 x 970 x 120mm
Weight (without box)2.9kg
Weight (with box)4.6kg
General
DesignOpen Frame
Diagonal15", 38cm
Light transmittance90%
Response time (BTB)8ms
Viewing zonehorizontal/vertical: 160°/150°, right/left: 80°/80°, up/down: 75°/75°
Horizontal Sync31.4 - 60kHz
Viewable area W x H304.1 x 228.1mm, 12 x 9"
Pixel pitch0.297mm
Bezel colour and finishblack
Through-Glass6mm
HDCPyes
Extraanti-fingerprint coating, touch through-glass, foam seal
Glass hardness7H
60950 Ball drop testyes
Water and dust protectionIP65 (front)
OSD key lockyes
Control buttonsmenu,scroll up/ brightness, scroll down/ contrast, select, power
User controlspicture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - 60°C
Cablespower, USB, HDMI, DP
Guidesquick start guide, safety guide
OtherAC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Remote controlexternal control pad
Power supply unitexternal
Power supplyDC 12 V
Power usage16W typical, 1.2W stand by
RegulationsCB, CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)E
REACH SVHCabove 0.1%: Lead
Pallet volume44pcs
EAN code4948570116751
Related productsOMK2-1
User manualTF10_15_22_2415MC-B2_A_B_1215MC-B1A_1615MC-B1-usermanual-e-revK.pdf
Technical specificationProLite TF1515MC-B2 - gb_en.pdf
DrawingTF1515MC_with_brackets_drawing.pdf
EU Energy LabelTF1515MC-B2 C EU Energy Label (1851373).pdf
UK Energy LabelTF1515MC-B2 C UK Energy Label (1851373).pdf
CE & TUVTF1515MC-2A CE_TUV.pdf
