Home / 10 - 19" Touch Screens / iiyama TF1734MC-B8X 17" Open Frame Touch Monitor

iiyama

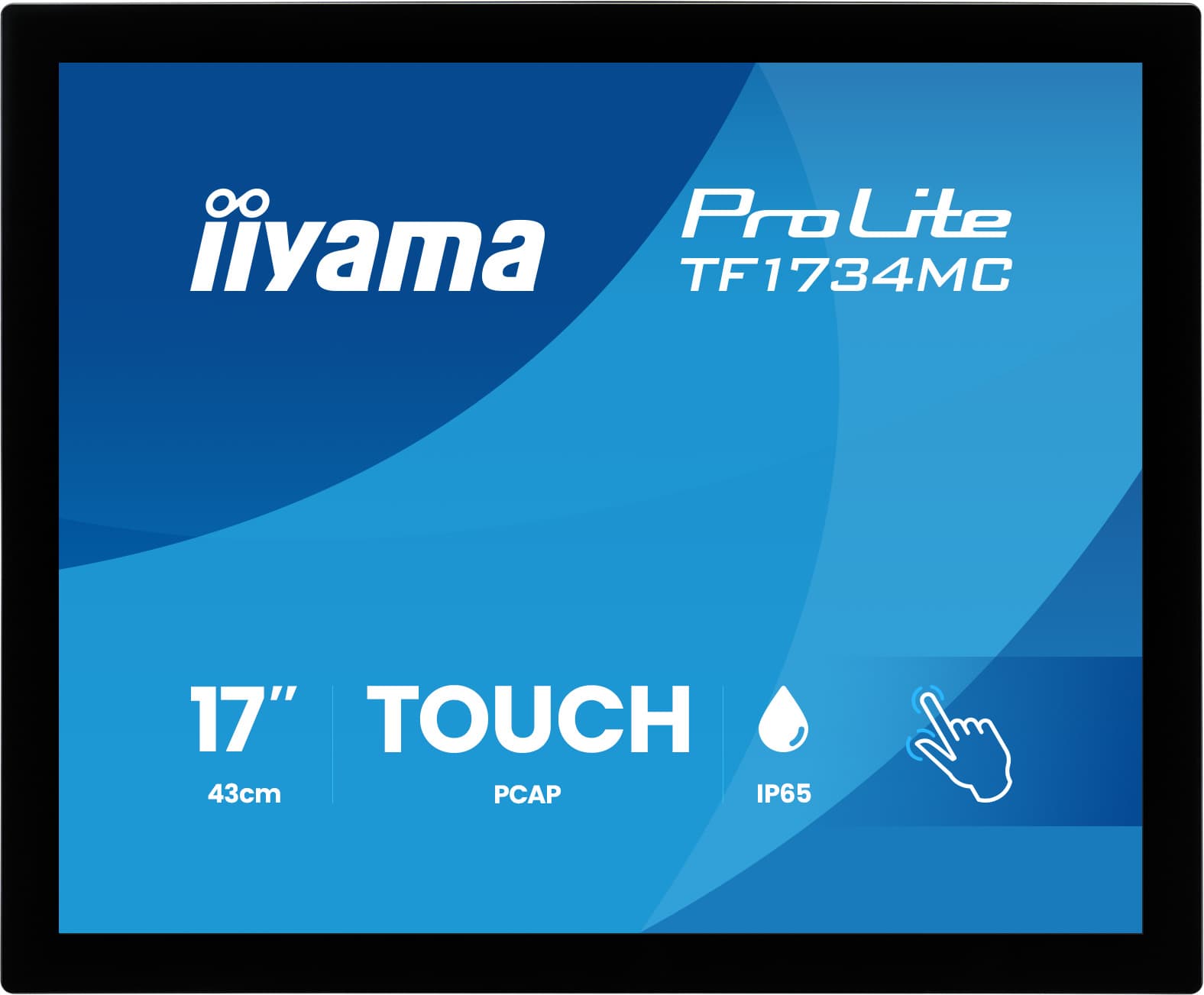

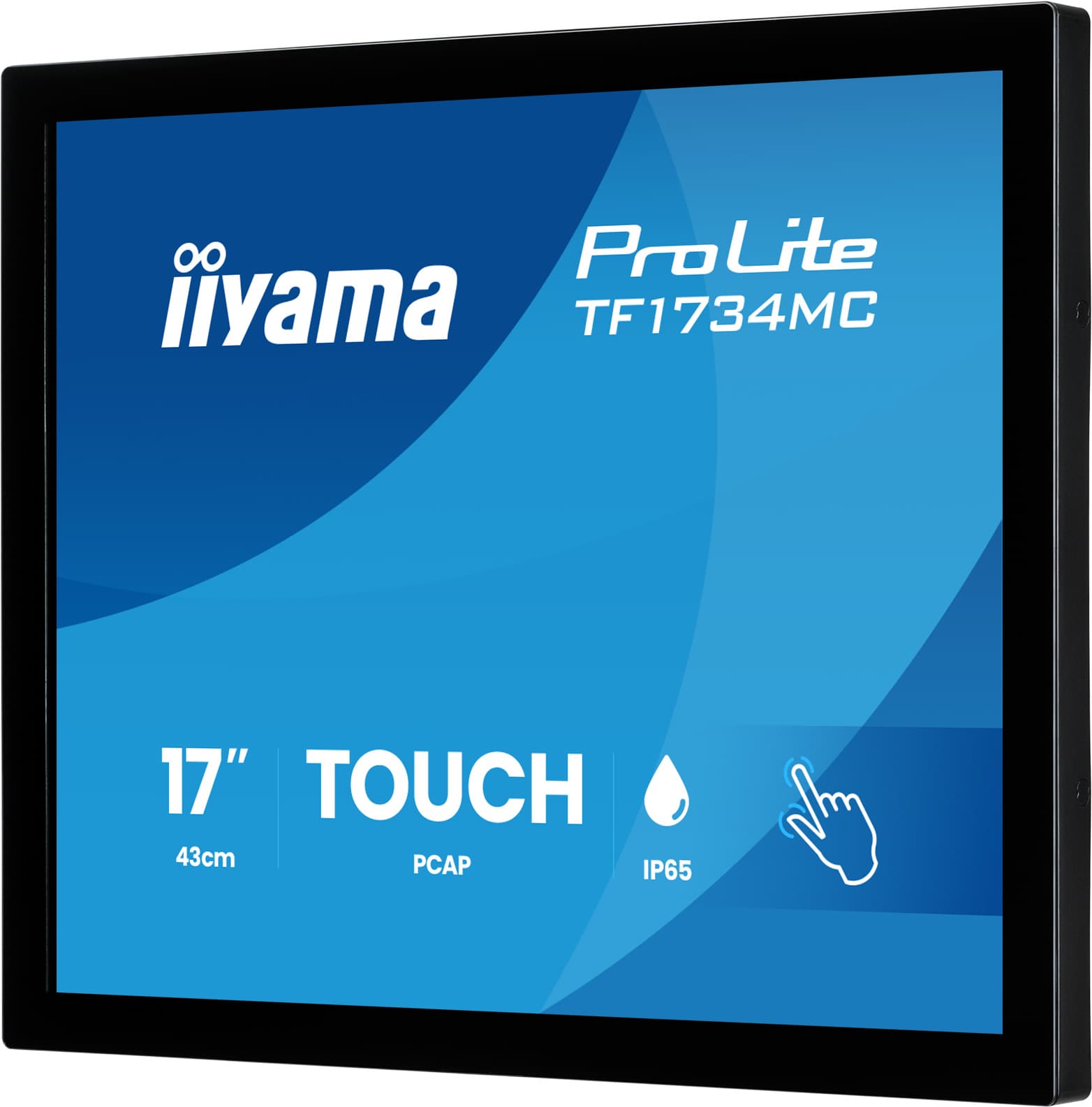

iiyama TF1734MC-B8X 17" Open Frame Touch Monitor

Name: iiyama TF1734MC-B8X 17" Open Frame Touch Monitor
Brand: iiyama
SKU: TF1734MC-B8X
Price: 573.44 GBP
Availability: LimitedAvailability

SKU TF1734MC-B8X

3 Years Warranty Included

Key specifications

DesignEdge to edge glass, Open Frame

Diagonal17", 43cm

PanelTN

Native resolution1280 x 1024 @75Hz (1.3 megapixel)

Aspect ratio5:4

Panel brightness350 cd/m²

Brightness300 cd/m² with touch

Light transmittance85%

£573.44inc. VAT

£477.87 ex. VAT

Ask a question

Low stock (5 left) — order soon

Request a Quote

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Est. delivery 29 Aug - 2 Sept

Return within 14 days

Installation services available Purchase orders — education customers only

Description

ProLite TF1734MC-B8X 17” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass

Technical specifications

Display

PanelTN

Native resolution1280 x 1024 @75Hz (1.3 megapixel)

Aspect ratio5:4

Panel brightness350 cd/m²

Brightness300 cd/m² with touch

Static contrast1000:1 with touch

Touch technologyprojective capacitive

Touch points10 (HID, only with supported OS)

Touch accuracy+- 2mm

Touch methodstylus, finger, glove (latex)

Touch interfaceUSB

Connectivity

Colour support16.7mln

Analog signal inputVGA x1

Digital signal inputHDMI x1DisplayPort x1

OSD languagesEN, DE, FR, ES, IT, PT, RU, JP, NL, PL

Power & Physical

VESA mounting100 x 100mm

Product dimensions W x H x D369 x 307 x 47.5mm

Box dimensions W x H x D387 x 145 x 455mm

Weight (without box)3.6kg

Weight (with box)5.2kg

General

DesignEdge to edge glass, Open Frame

Diagonal17", 43cm

Light transmittance85%

Response time (BTB)5ms

Viewing zonehorizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°

Horizontal Sync31 - 80kHz

Viewable area W x H338 x 270mm, 13.3 x 10.6"

Pixel pitch0.264mm

Bezel colour and finishblack, matte

Through-Glass6mm

Palm rejectionyes

Extraanti-fingerprint coating, touch through-glass

Glass thickness3mm

60950 Ball drop testyes

Water and dust protectionIP65 (front)

OSD key lockyes

Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

User controlspicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)

Plug&PlayDDC2B

Orientationlandscape, portrait, face-up

Cablespower (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)

Guidesquick start guide, safety guide

OtherAC adapter

Cable coveryes

Power supply unitexternal

Power supplyDC 12 V

Power usage13W typical, 1.5W stand by, 0.3W off mode

RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)E

REACH SVHCabove 0.1%: Lead, Lead monoxide, Boric acid

EAN code4948570127818

Related productsRC TOUCHV01, OMK1-1

User manualTF15_17_1934MC-B8X-usermanual-e-revB.pdf

Technical specificationProLite TF1734MC-B8X - gb_en.pdf

DrawingTF1734MC_drawing.pdf

EU Energy LabelTF1734MC-B8X EU Energy Label (2613446).pdf

UK Energy LabelTF1734MC-B8X UK Energy Label (2613446).pdf

Documents

iiyama TF1734MC-B8X datasheet
